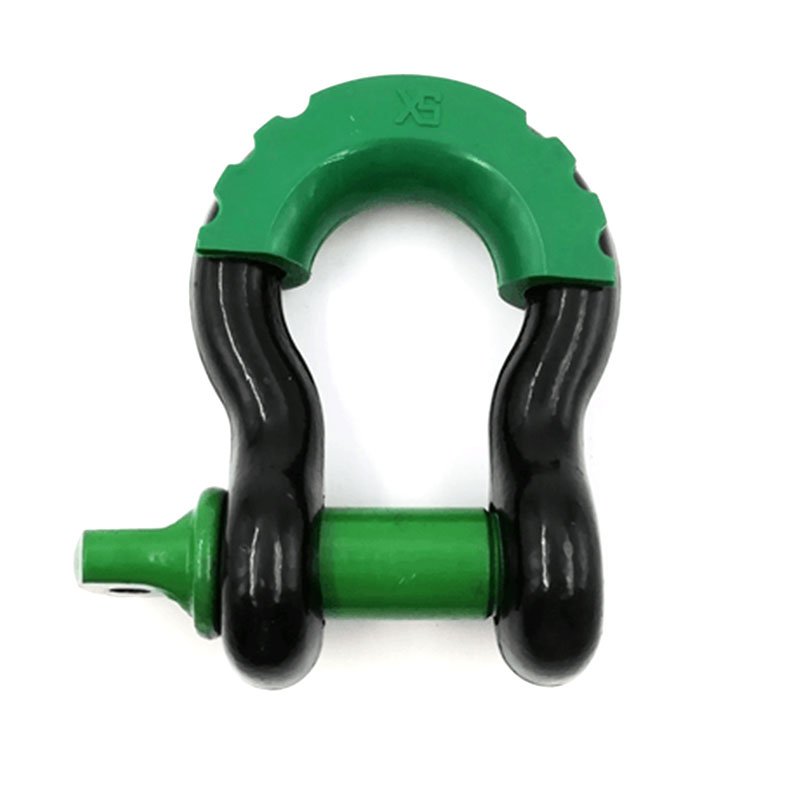

D Ring Shackle

D Ring Shackle

Material: High Quality Carbon Steel

Standard: EN and US Standard

Certificates: ISO/CE

Size: All / Different Size Available( 3/4 inch, 7/8 inch, 1/2 inch)

Sample: Free

Package: Carton/Gunny bag/Pallet / As customer’s requirements.


0.00
0.00


Material: High Quality Carbon Steel

Standard: EN and US Standard

Certificates: ISO/CE

Size: All / Different Size Available( 3/4 inch, 7/8 inch, 1/2 inch)

Sample: Free

Package: Carton/Gunny bag/Pallet / As customer’s requirements.


DESCRIPTION

    ● Recovery towing shackle

    ● High tensile steel, body carbon steel, pin alloy steel

    ● Safety Factor: 4:1 or 6:1

    ● Powder coating finishing, colors as your request

TABLE PARAMETER


Nominal
Size(IN.)
WLLWeightDimensions(mm)
PTONKGABCEF

3/16"  1/30.039.656.3522.415.214.2

1/4"  1/20.0511.97.8528.719.815.5

5/16"  3/40.0913.59.653121.319.1

3/8"10.1416.811.236.626.223.1

7/16"1-1/20.1719.112.742.929.526.9

1/2"20.3320.61647.833.330.2

5/8"3-1/40.6226.919.160.542.938.1

3/4"4-3/41.0731.822.471.55146

7/8"6-1/21.6436.625.4845853

1"8-1/22.2842.928.795.568.560.5

1-1/8"9-1/23.364631.81087468.5

1-1/4"124.3151.535.111992.576

1-3/8"13-1/26.145738.11339284

1-1/2"177.860.541.414698.592

1-3/4"2512.67351178127106

2"3520.482.557197146122

2-1/2"5538.910570267184145
